# maven实战项目--导入依赖

2021-07-31 IT開発 Tags: 无标签 阅读: 355

狂神的link-->link

Mybatis层

导入相关的pom依赖！
Junit
数据库驱动
数据库连接池
Servlet - JSP
Mybatis
Spring
lombok

导入依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.xuwen</groupId>
    <artifactId>ssmbooks</artifactId>
    <version>1.0-SNAPSHOT</version>
    <!--依赖问题,junit,数据库启动，连接池，servlet，jsp,mybatis,mybatis-spring,spring-->
    <dependencies>
        <!--Junit-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>
        <!--数据库驱动-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.47</version>
        </dependency>
        <!-- 数据库连接池 -->
        <dependency>
            <groupId>com.mchange</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.5.2</version>
        </dependency>
        <!--Servlet - JSP -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>2.5</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>jsp-api</artifactId>
            <version>2.2</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>
        <!--Mybatis-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.2</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>2.0.2</version>
        </dependency>
        <!--Spring-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.1.9.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.1.9.RELEASE</version>
        </dependency>
        <!--lombok-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.12</version>
        </dependency>
    </dependencies>

    <!--静态资源导出-->
    <!--    在build中配置resources ， 来防止我们资源导出失败的问题-->
    <build>
        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
            </resource>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
            </resource>
        </resources>
    </build>

</project>

建立包，结构,建立基本结构和配置框架！

com.xxx.dao
dao,
pojo
controller
service

mybatis-config.xml-->mybatis核心配置文件
applicationContext.xml-->spring核心配置文件,bean

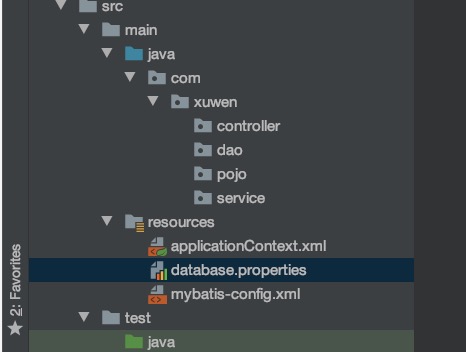

截屏2021-07-31 10.34.48.jpg

mybatis-config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
       PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
       "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
</configuration>

applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
      xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd">
</beans>

database.properties

Mybatis层编写

1.数据库配置文件 database.properties

jdbc.driver=com.mysql.jdbc.Driver
# useSSL=true会报错，空了研究下原因
jdbc.url=jdbc:mysql://localhost:3306/ssmbuild?useSSL=false&useUnicode=true&characterEncoding=utf8
jdbc.username=root
jdbc.password=123456

2IDEA关联数据库
3编写MyBatis的核心配置文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
       PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
       "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
   <!--别名-->
    <typeAliases>
        <package name="com.lu.pojo"/>
    </typeAliases>
    <!--要引入的mapper文件的位置-->
    <mappers>
        <mapper resource="com/lu/dao/BookMapper.xml"/>
    </mappers>
</configuration>

编写数据库对应的实体类

com.lu.pojo.Books，使用lombok插件！

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Books {
   private int bookID;
   private String bookName;
   private int bookCounts;
   private String detail;
}

编写Dao层的Mapper接口

public interface BookMapper {
   //增加一个Book
   int addBook(Books book);
   //根据id删除一个Book
   int deleteBookById(int id);
   //更新Book
   int updateBook(Books books);
   //根据id查询,返回一个Book
   Books queryBookById(int id);
   //查询全部Book,返回list集合
   List<Books> queryAllBook();
}

编写接口对应的 Mapper文件

BookMapper.xml 。需要导入MyBatis的包；

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
       PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
       "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.lu.dao.BookMapper">
   <!--增加一个Book-->
   <insert id="addBook" parameterType="Books">
      insert into ssmbuild.books(bookName,bookCounts,detail)
      values (#{bookName}, #{bookCounts}, #{detail})
   </insert>
   <!--根据id删除一个Book-->
   <delete id="deleteBookById" parameterType="int">
      delete from ssmbuild.books where bookID=#{bookID}
   </delete>
   <!--更新Book-->
   <update id="updateBook" parameterType="Books">
      update ssmbuild.books
      set bookName = #{bookName},bookCounts = #{bookCounts},detail = #{detail}
      where bookID = #{bookID}
   </update>
   <!--根据id查询,返回一个Book-->
   <select id="queryBookById" resultType="Books">
      select * from ssmbuild.books
      where bookID = #{bookID}
   </select>
   <!--查询全部Book-->
   <select id="queryAllBook" resultType="Books">
      SELECT * from ssmbuild.books
   </select>
</mapper>

编写Service层的接口+实现类

接口

//BookService:底下需要去实现,调用dao层
public interface BookService {
   //增加一个Book
   int addBook(Books book);
   //根据id删除一个Book
   int deleteBookById(int id);
   //更新Book
   int updateBook(Books books);
   //根据id查询,返回一个Book
   Books queryBookById(int id);
   //查询全部Book,返回list集合
   List<Books> queryAllBook();
}

实现类

@Service
public class BookServiceImpl implements BookService {
    //调用dao层的操作，设置一个set接口，方便Spring管理
    private BookMapper bookMapper;
    public void setBookMapper(BookMapper bookMapper) {
        this.bookMapper = bookMapper;
    }
    public int addBook(Books book) {
        return bookMapper.addBook(book);
    }
    public int deleteBookById(int id) {
        return bookMapper.deleteBookById(id);
    }
    public int updateBook(Books books) {
        return bookMapper.updateBook(books);
    }
    public Books queryBookById(int id) {
        return bookMapper.queryBookById(id);
    }
    public List<Books> queryAllBook() {
        return bookMapper.queryAllBook();
    }
}

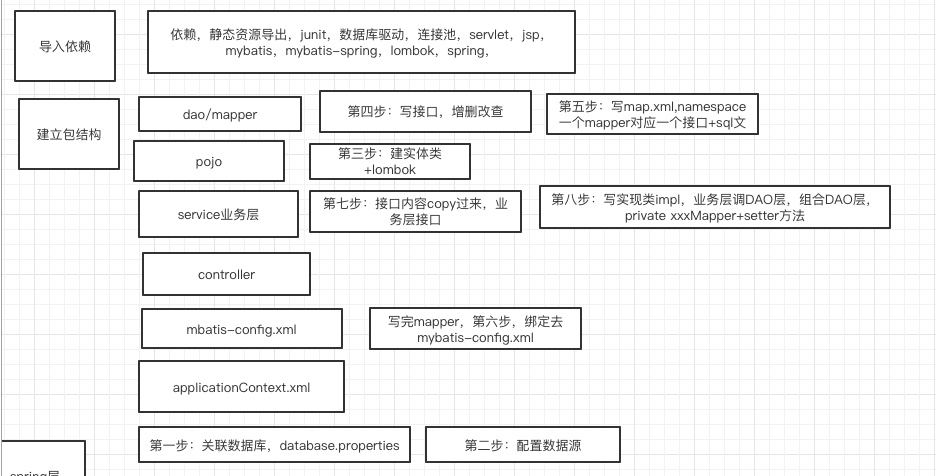

截屏2021-07-31 12.16.37.jpg

============OK，到此，底层需求操作编写完毕！

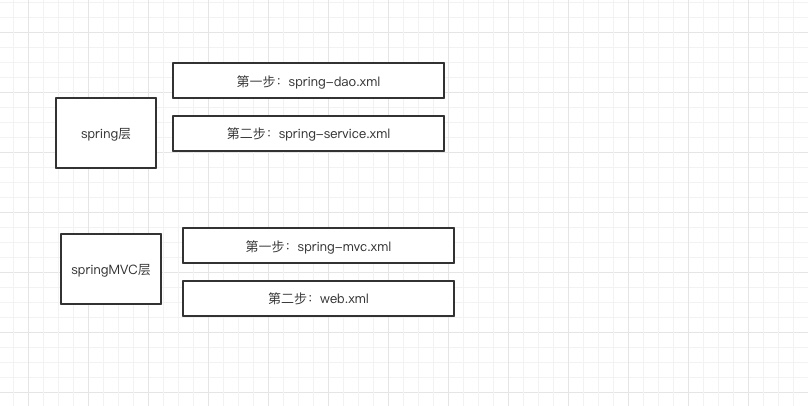

Spring层

1、spring整合dao层，spring-dao.xml
关联数据库文件
配置数据库连接池
配置sqlSessionFactory对象
注入数据库连接池
配置MyBatis全局配置文件：mybatis-config.xml
配置扫描Dao接口包，动态实现Dao接口注入到spring容器中

spring-dao.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       https://www.springframework.org/schema/context/spring-context.xsd">
    <!--1。关联数据库配置文件-->
    <context:property-placeholder location="classpath:database.properties"/>

    <!--2,连接池,c3p0,dbcp,druid-->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
        <!-- c3p0连接池的私有属性 -->
        <property name="maxPoolSize" value="30"/>
        <property name="minPoolSize" value="10"/>
        <!-- 关闭连接后不自动commit -->
        <property name="autoCommitOnClose" value="false"/>
        <!-- 获取连接超时时间 -->
        <property name="checkoutTimeout" value="10000"/>
        <!-- 当获取连接失败重试次数 -->
        <property name="acquireRetryAttempts" value="2"/>
    </bean>

    <!--3。sqlSessionFactory-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>
        <!--绑定mybatis的配置文件-->
        <property name="configLocation" value="classpath:mybatis-config.xml"/>
    </bean>

    <!--4配置dao接口扫描包,动态Dao接口注入spring容器-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer" >
        <!--注入sqlSessionFactory-->
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
        <!--要扫描的包-->
        <property name="basePackage" value="com.xuwen.dao"/>
    </bean>

</beans>

Spring整合service层，spring-service.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
      xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      xmlns:context="http://www.springframework.org/schema/context"
      xsi:schemaLocation="http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context.xsd">
   <!-- 扫描service相关的bean -->
   <context:component-scan base-package="com.lu.service" />
   <!--BookServiceImpl注入到IOC容器中-->
   <bean id="BookServiceImpl" class="com.lu.service.BookServiceImpl">
       <property name="bookMapper" ref="bookMapper"/>
   </bean>
   <!-- 配置事务管理器 -->
   <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
       <!-- 注入数据库连接池 -->
       <property name="dataSource" ref="dataSource" />
   </bean>
</beans>

Spring层搞定！再次理解一下，Spring就是一个大杂烩，一个容器！================

SpringMVC层

1.增加web支持。

spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/mvc
       http://www.springframework.org/schema/mvc/spring-mvc.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd">

    <!--注解驱动，静态资源过滤，扫描包controller，视图解析器-->
    <mvc:annotation-driven/>
    <mvc:default-servlet-handler/>
    <context:component-scan base-package="com.xuwen.controller"/>
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/jsp/"/>
        <property name="suffix" value=".jsp"/>
    </bean>


</beans>

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

    <servlet>
        <servlet-name>springmvc</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:applicationContext.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>springmvc</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <!--乱码过滤-->
    <!--配置乱码过滤器-->
    <filter>
        <filter-name>encoding</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>utf-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encoding</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
    <!--session-->
    <session-config>
        <session-timeout>15</session-timeout>
    </session-config>

</web-app>

spring配置文件整合，applicationContext.xml

3个文件汇总，导入

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd">
    <import resource="spring/spring-dao.xml"/>
    <import resource="spring/spring-service.xml"/>
    <import resource="spring/spring-mvc.xml"/>
</beans>

截屏2021-07-31 13.57.57.jpg

业务代码

controller和视图层

index.jsp

allbook.jsp

addbook.jsp

updateBook.jsp

bookController类编写

方法一：查询全部书籍

方法二：添加书籍

方法三：修改书籍

方法四：删除书籍

配置Tomcat，进行运行！
